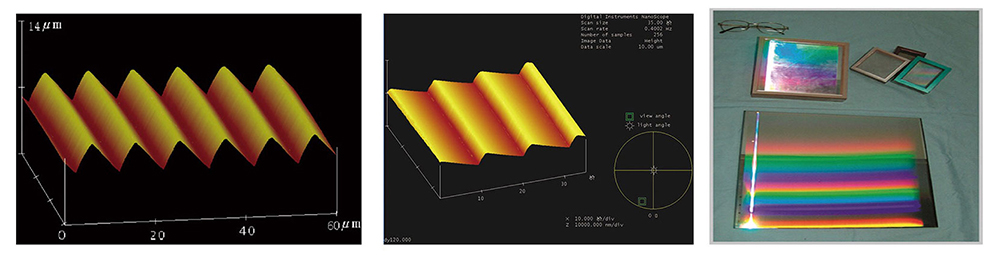

刻划光栅是在光栅刻划机上使用金刚石刀具在镀有铝膜的基底上刻划形成的，即刀具对铝膜产生挤压和抛光作用使其产生弹塑性形变从而形成周期性浮雕结构（通常为三角形）。光栅刻刀在刻划方向上往复运动，工作台垂直于刻划方向作单方向运动，通过两个方向的运动合成，完成光栅刻划。
编 号 |
刻线密度(l/m m ) |
闪耀波长（μ m ) |
闪耀角 |
刻划面积(H x W ,mm² ) |
R11-001 |
20 |
10.0 |
5.7° |
70×90 |
R11-002 |
20 |
10.0 |
5.7° |
63×105 |
R11-003 |
50 |
12.8 |
18.7° |
40×40 |
R11-004 |
50 |
18.0 |
26.7° |
60×63 |
R11-005 |
50 |
10.6 |
15.4° |
65×100 |
R11-006 |
75 |
2.0 |
4.3° |
48×48 |
R11-007 |
100 |
2.5 |
7.2° |
60×60 |
R11-008 |
100 |
2.75 |
7.9° |
64×64 |
R11-009 |
100 |
7.0 |
20.5° |
63×63 |
R11-010 |
100 |
9.0 |
26.7° |
20×20 |
R11-011 |
100 |
9.8 |
29.3° |
20×20 |
R11-012 |
100 |
10.6 |
32.0° |
100×100 |
R11-013 |
100 |
16.0 |
53.1° |
70×130 |
R11-014 |
150 |
2.0 |
8.6° |
55×60 |
R11-015 |
150 |
4.0 |
17.5° |
64×64 |
R11-016 |
150 |
5.3 |
23.4° |
25×25 |
R11-017 |
150 |
6.0 |
26.7° |
64×64 |
R11-018 |
150 |
10.0 |
48.6° |
70×130 |
R11-019 |
150 |
10.6 |
52.7° |
50×50 |
R11-020 |
200 |
1.55 |
8.9° |
38×41 |
R11-021 |
200 |
1.8 |
10.4° |
63×100 |
R11-022 |
200 |
5.0 |
30.0° |
55×55 |
R11-023 |
250 |
0.5 |
5.7° |
64×64 |
R11-024 |
300 |
0.5 |
4.3° |
64×64 |
R11-025 |
300 |
0.6 |
5.2° |
100×100 |
R11-026 |
300 |
0.64 |
5.5° |
64×64 |
R11-027 |
300 |
1.0 |
8.6° |
64×64 |
R11-028 |
300 |
1.5 |
13.0° |
64×64 |
R11-029 |
300 |
1.9 |
16.6° |
64×64 |
R11-030 |
300 |
2.0 |
17.5° |
64×64 |
R11-031 |
300 |
2.4 |
21.1° |
60×60 |
R11-032 |
300 |
2.5 |
22.0° |
64×64 |
R11-033 |
300 |
2.75 |
24.4° |
64×64 |
R11-034 |
300 |
2.8 |
24.8° |
50×50 |
R11-035 |
300 |
3.0 |
26.7° |
50×50 |
R11-036 |
300 |
3.5 |
32.7° |
50×50 |
R11-037 |
300 |
3.8 |
34.8° |
50×50 |
R11-038 |
300 |
4.0 |
36.9° |
50×50 |
R11-039 |
300 |
5.0 |
48.6° |
55×55 |
R11-040 |
400 |
0.43 |
4.9° |
35×50 |
R11-041 |
400 |
0.5 |
5.7° |
50×50 |
R11-042 |
400 |
0.54 |
6.2° |
48×50 |
R11-043 |
400 |
1.5 |
17.5° |
64×64 |
R11-044 |
400 |
2.0 |
23.6° |
64×64 |
R11-045 |
450 |
0.43 |
5.6° |
40×48 |
R11-046 |
600 |
0.25 |
4.3° |
64×64 |
R11-047 |
600 |
0.36 |
6.2° |
50×50 |
R11-048 |
600 |
0.43 |
7.4° |
40×40 |
R11-049 |
600 |
0.5 |
5.6° |
55×64 |
R11-050 |
600 |
0.54 |
9.3° |
85×85 |
R11-051 |
600 |
0.6 |
10.4° |
64×64 |
R11-052 |
600 |
0.63 |
10.9° |
17×44 |
R11-053 |
600 |
0.64 |
11.1° |
70×70 |
R11-054 |
600 |
0.7 |
12.1° |
64×64 |
R11-055 |
600 |
0.72 |
12.5° |
25×25 |
R11-056 |
600 |
0.8 |
13.9° |
20×45 |
R11-057 |
600 |
1.0 |
17.5° |
40×65 |
R11-058 |
600 |
1.06 |
18.5° |
40×65 |
R11-059 |
600 |
1.25 |
22.0° |
64×64 |
R11-060 |
600 |
1.5 |
26.7° |
64×64 |
R11-061 |
600 |
0.43 |
28.7° |
40×48 |
R11-062 |
600 |
2.7 |
54.1° |
20×90 |
R11-063 |
1200 |
0.21 |
7.2° |
64×64 |
R11-064 |
1200 |
0.25 |
8.6° |
64×64 |
R11-065 |
1200 |
0.31 |
10.7° |
64×64 |
R11-066 |
1200 |
0.36 |
12.5° |
55×55 |
R11-067 |
1200 |
0.43 |
15.0° |
53×62 |
R11-068 |
1200 |
0.5 |
17.5° |
102×102 |
R11-069 |
1200 |
0.54 |
18.9° |
70×70 |
R11-070 |
1200 |
0.64 |
22.6° |
100×102 |
R11-071 |
1200 |
0.72 |
25.6° |
50×60 |
R11-072 |
1200 |
0.8 |
28.7° |
50×100 |
R11-073 |
1200 |
1.0 |
36.9° |
50×60 |
R11-074 |
1200 |
1.06 |
39.5° |
100×105 |
R11-075 |
1800 |
0.21 |
10.9° |
64×64 |
R11-076 |
1800 |
0.5 |
26.7° |
50×50 |
R11-077 |
1800 |
0.5 |
26.7° |
30×70 |
R11-078 |
1800 |
0.54 |
29.1° |
30×70 |
R11-079 |
1800 |
0.72 |
40.4° |
30×70 |
